Seamless install application
Step 1
Remove Headliner
Remove pillar trims and fittings, then take the headliner out of the vehicle.
Step 2
Paint or Dye Headliner
[Optional] Apply fabric paint or dye evenly to achieve your desired colour and allow it to fully dry.
Step 3
Mark Holes
Pen in star positions based on the chosen star density and desired layout.
Step 4
Drill Holes
Drill at each marked point using a 1–1.5 mm drill bit. A dremel is the best tool, but a pin or drill will work fine.
Step 5
Thread Fibers
Insert the fibre optic strands through each hole from the back of the headliner.
Step 6
Glue Fibers
Secure the fibres in place on the rear side using a pea sized amount of hot glue.
Step 7
Cut Fibers Flush

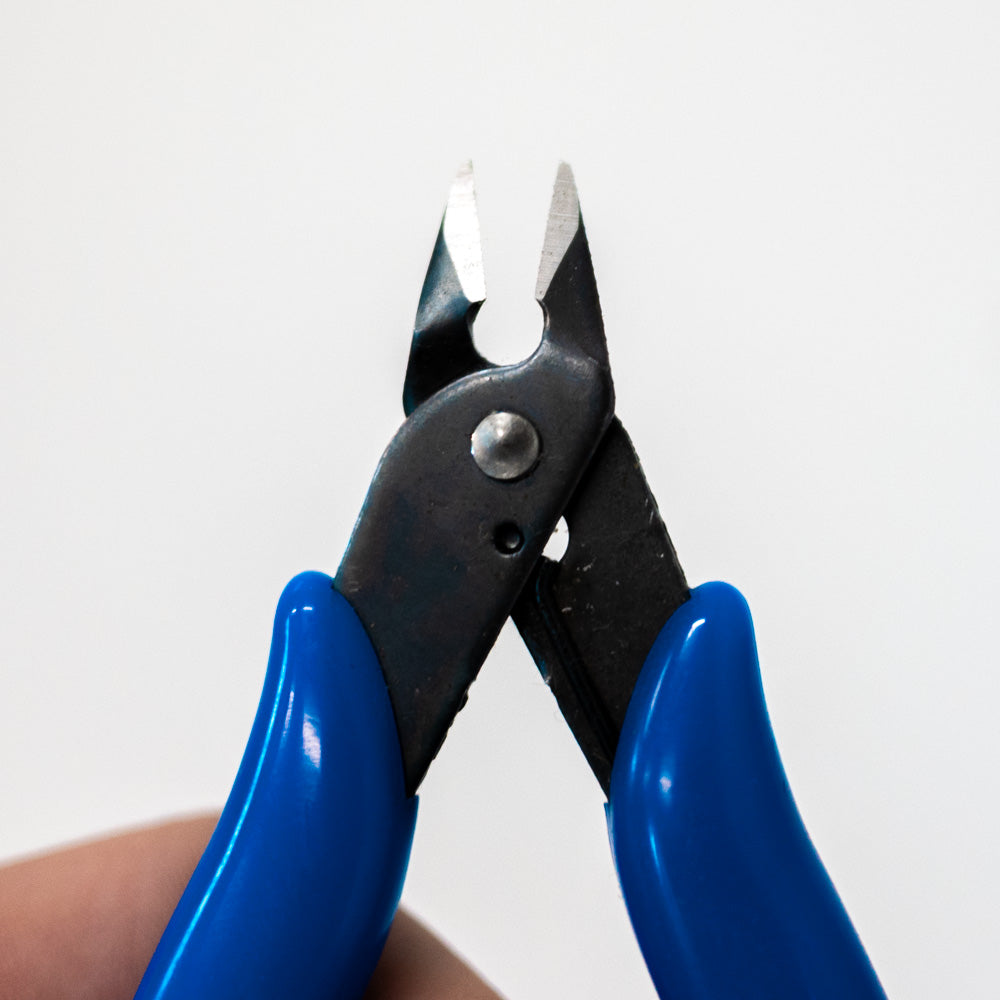

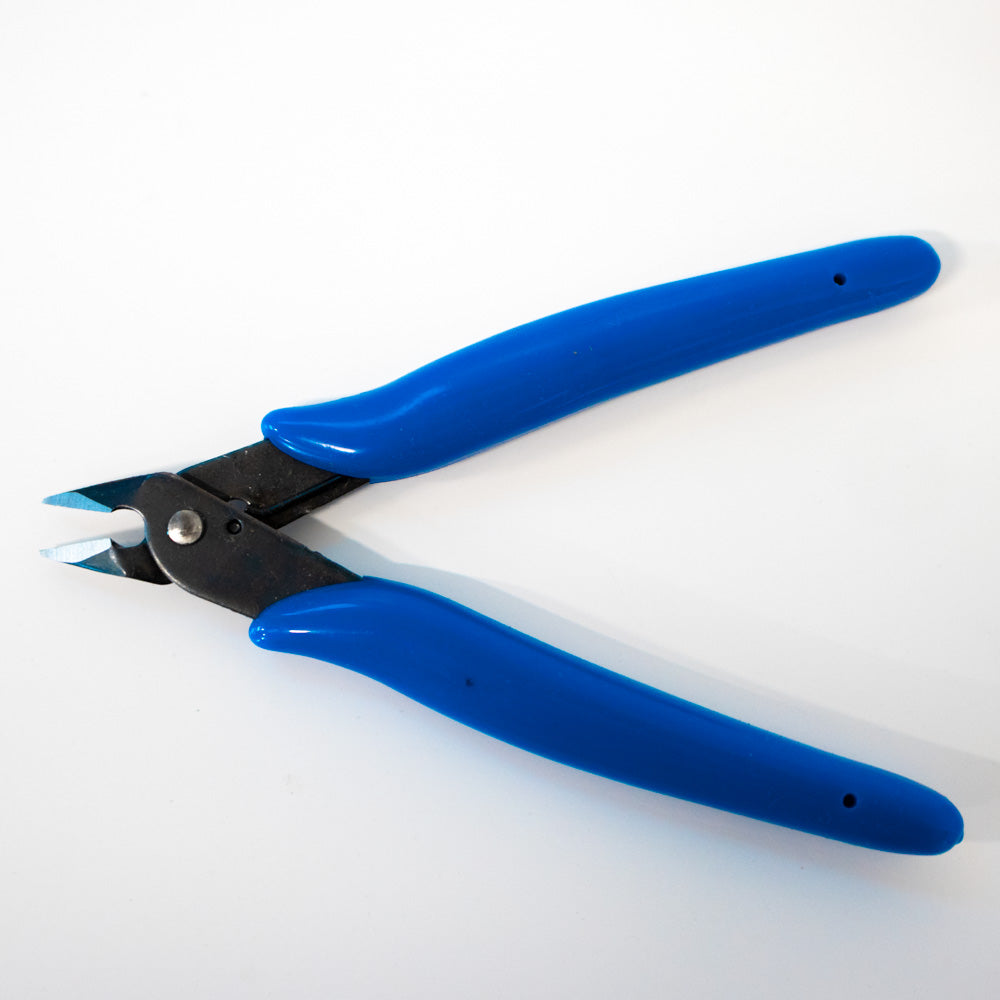

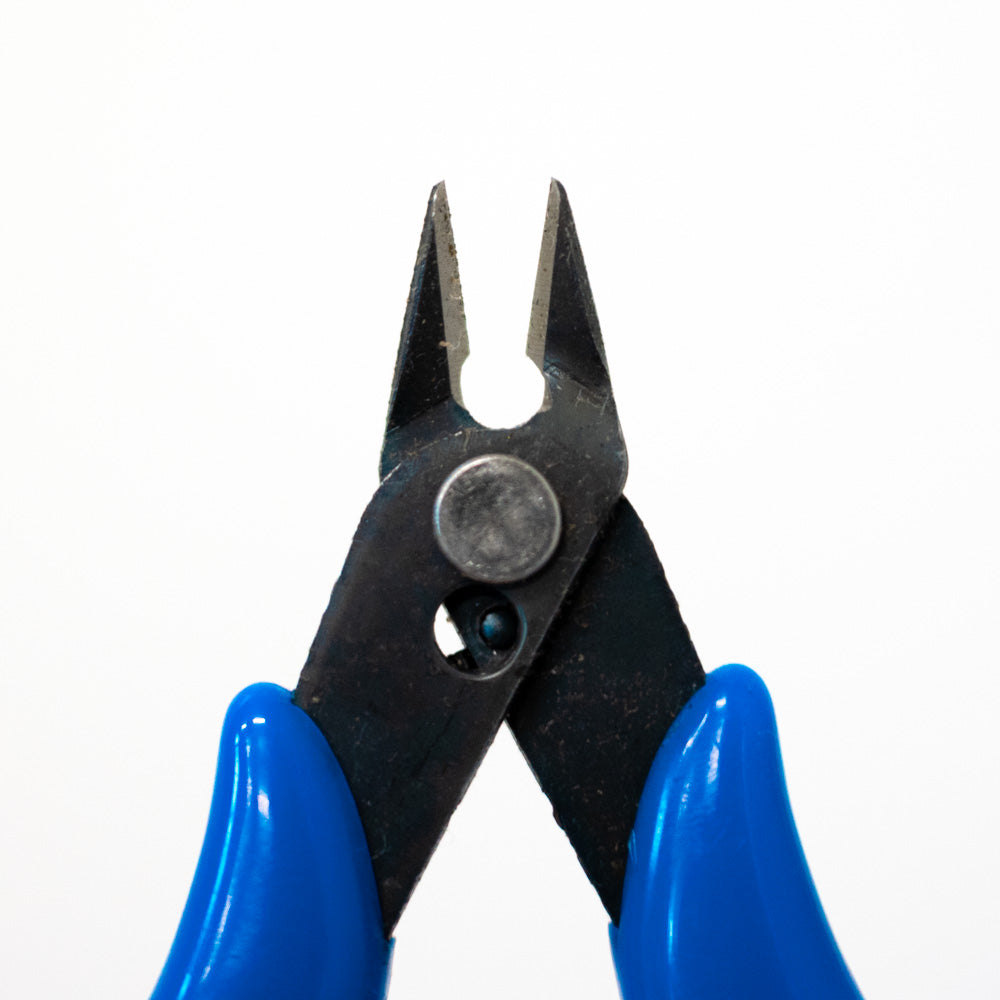

Trim the fibre ends on the front surface so they sit flush with the headliner. Ideal tool is flush cutters, nail clippers will work.
Step 8
Reinstall Headliner
Reinstall the finished headliner back into the vehicle and reconnect all fittings. Connect fibers to motor with supplied fittings.
Step 9
Enjoy the Ambience
Switch on your starlight headliner and enjoy the finished result!
1/9
kit size buying guide
Single Cab
e.g., Toyota Hilux, Mazda BT-50, Ford Ranger.
Medium Density - 300
High Density - 400
Extra Cab
e.g., Toyota Hilux, Mazda BT-50, Ford Ranger.
Low Density - 300
Medium Density - 400
High Density - 500
Dual Cab
e.g., Toyota Hilux, Mazda BT-50, Ford Ranger.
Low Density - 400
Medium Density - 600
High Density - 800
Wagon
e.g., Toyota LC80/76/200, Nissan Y61 Wagon.
Low Density - 600
Medium Density - 800
High Density - 1000+
Sedan
e.g., Mercedes A-Class, Holden Commodore.
Low Density - 400
Medium Density - 500
High Density - 700
Coupe
e.g., BMW 4 Series, Ford Mustang
Low Density - 300
Medium Density - 400
High Density - 600
